17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA

17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA

  • 17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA
  • 17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA
17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHT640-35
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard packing
Delivery Time: 3 months
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Detector Type: Vox Uncooled FPA Pixel: 640×512
Focal Length: 35mm NETD: ≤50mk@25℃
External Power Supply: DC12V FOV: 17.81°× 14.25°
High Light:

Portable Binocular IP67

,

RS232 Serial Port Portable Binocular

,

DC12V Hand Held Binoculars

Portable Hand-held Binocular

Sturdy and light; low power consumption, long endurance, fully automatic, one button start-up, HD large magnification display; automatic screen off, no light leakage, safe and reliable



1. Technical Specification

1.1 Feature



1) Thermal Camera



a) Automatic shutter correction after power-on. Auto correction is not allowed after image appears, but manual correction is allowed;

b) Menu function with focus, DDE, polarity setting, E-zoom, etc;



c) Polarity setting(BH/WH);



d) 2×,4× E-zoom;



e) Image enhancement DDE ;

f) Power consumption:≤2W@25℃;



g) Communication : RS232 serial port, there is corresponding serial port command for each button operation;



h) Starting time for sensor<10s





2) Structure



a) Compatible with 640, 320 sensor



b) Compliant with ergonomic design



3) Battery



a) 7.4V,1500~1800mAh( two pieces 18650)



b) satisfied with -40℃ working requirement

1.2 Performance



1) Range performance



Range

performance



Human(1.8×0.5m)



Vehicle(2.3×2.3m)



Vessel (10m²)

Detection 0.5km 0.8km 1.8km
Recognition 0.25km 0.4km 0.9km

2) Parameter









Detector

Type Vox Uncooled FPA
Pixel 640×512
Spectral band 8~14µm
Pixel size 17µm







Lens

Focal length 35mm
Focus Motor-driven
F# F 1.0
FOV 17.81°× 14.25°
Thermal NETD ≤50mk@25℃



image performance Image enhancement Auto image filter, DDE
AGC

Auto/Manual brightness contrast

adjustment

Image BH/WH
E-zoom 2×, 4×







Image display

Eyepiece module 800×600 OLED adjustable diopter
Storage card Built-in 32G
Storage type Photo shooting/video shooting, with time stamp
Capacity >9000 images/2 hours
Format JPG





Power supply system

Battery type Chargeable Li-battery
Working time No less than 4hours
Charge type Power supply adapter
External power supply DC12V











Physical

Weight ≤800g (subject to final design)
Dimension ≤300×80×80mm (subject to final design)
Electrical interface

Power supply, video PAL, communication

RS232, USB

Mechanical interface 1/4’’ standard interface



Environmental

Working temperature -40℃~﹢60℃(except external monitor)
Working humidity Up to 95%RH
  IP level IP67
  Environmental test Complying with GJB150 standard

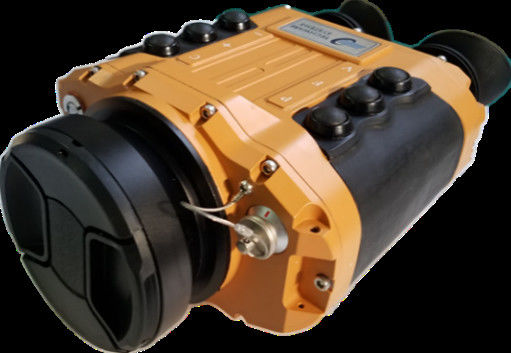

17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA 0

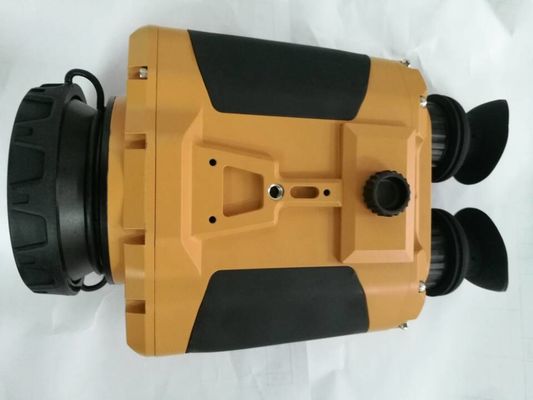

17.81° × 14.25° FOV Portable Hand-held Binocular IP67 With Vox Uncooled FPA 1
