Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

    • Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof
    • Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof
    • Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof
  • Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: jh640-800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Standard Safety Equipment Case
    Delivery Time: 2months after received payment
    Payment Terms: T/T, L/C
    Supply Ability: 50Sets/Year
    Contact Now
    Detailed Product Description
    Technology: Infrared Style: Thermal Imaging Camera
    Type: Continuous Zoom EO IR Camera Focus Length: 800~80mm Continous Zoom
    Standard: GJB Feature: Waterproof/Weatherproof
    Effective Distance: 30km(target:2.3m X 2.3m Vehicle) Applications: Navigation, Surveillance, Rescue

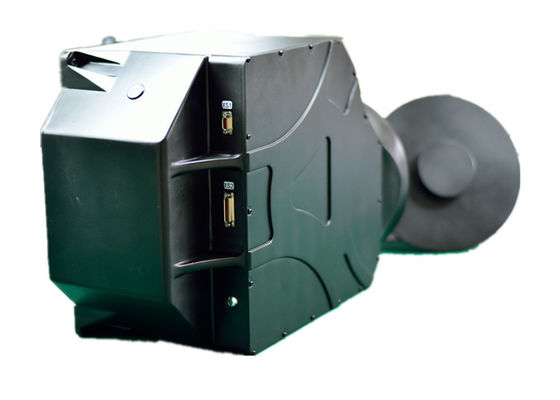

    JH640-800 Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera



    1.1 Optics System

    The thermal camera utilize mid-wave (3.7μm~4.8μm) continuous zoom optical system which is full transmissive structure consists of front fixed lenses group, zoom lenses group, compensation lenses group, back fixed lenses group, reflector and relay lenses group. The optics system diagram refers to Figure 1.

    Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

    Figure 1 Continuous zooming optical system diagram

    The zoom lenses group and compensation lenses group adopt 2 pieces of separating lens. In order to ensure the clear and stable image quality, when the zoom lenses move along the axis direction, the compensation lenses move with them synchronously to make real-time compensation. Dual motor drive design for zoom and compensation lenses group can diminish volume and reduce weight, at same time, using reflectors to reflective light path can also diminish volume further. The relay lenses make entrance pupil located in the central of system, each lens focal power and caliber are uniformity to realize 100% cooled shield efficiency.

    1.2 Detector

    The JH640-800 long range surveillance thermal camera chooses imported third generation of cooled staring focal plane array detector, it is the most mature and the most widely applied high performance detector. The focal plane is made of HgCdTe material with mid-wave (3.7μm~4.8μm) infrared response. The detectivity (D*) reaches. With advantages of good performance in the effective spectral region and broad operating temperature range, this detector have widely applied to infrared detection, surveillance, monitoring, warning, target search and tracking on the aircraft, vessel, vehicle and other carriers.

    The detector cooling adopts integra Stirling cycle cooler that utilize gassy isentropic expansion principle with characters of multi-function and long-life .This kind of cooler have many advantages, such as compact structure, small volume, light weight, wide cooled temperature range, short starting time, high efficiency, long life, easy to control, long continuous working time and so on.

    1.3 Signal Processing Circuit

    1.3.1 Principle

    If compared infrared focal plane arrays to eyes of infrared thermal camera, image processing circuit board is its brain. The main function of signal processing circuit (SPC) is comprehensive real-time signal analysis aimed at infrared image defects. On the basis of temperature stability of FPA, SPC achieve functions of driving signal generation, standard video compositing, communications with PC, human-machine communication etc. The basic principle of signal processing circuit board refers to Figure 2.

    Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof



    Specifications:



    DETECTOR

    Detector

    Cooled HgCdTe FPA

    Pixel

    A mode: 640X512

    B mode: 320x256

    Spectral Range

    A mode: 3.7μm~4.8μm

    B mode: 3.7μm~4.8μm/7.7μm~11.0μm

    NETD

    ≤25mK(at 25℃)

    FPA Operating Temperature

    90K~120K

    Cooling Type

    Stirling Cycle Cooling

    Cooling

    ≤6min at 25ºC

    OPTICS

    Focal Length

    80~800mm (continuous zoom) F#:4

    FOV

    6.87°×5.50°~0.69°×0.55°(H x V)

    IMAGE DISPLAY

    Video Output

    Analog Video: Standard PAL

    Frame Frequency:25Hz

    Digital Video:14bits LVDS

    Brightness & Contrast

    Auto/Manual Adjust

    Polarity

    BH&WH

    COMMUNICATION INTERFACE

    Command and Control

     RS232

    POWER SUPPLY

    Power Supply

    24VDC/1.5A

    Wide Supply Range

    18V~36V

    Power Consumption

    ≤25w

    ENVIRONMENTAL

    Operating Temperature

    -40ºC~+60ºC

    Storage Temperature

    -50ºC~+70ºC

    Vibration &Shock Proof

    GJB150.16-86 /MIL-STD-810F-514.5

     High & Low Temperature Test

    GJB 150.3-86 / MIL-STD-810F-514.5

    PHYSICAL

    Weight

    ≤20kg

    Size

    460mm x 230mm x 325mm(LxWxH)

    Color

    Oxide black

    DETECTION RANGE

    Detection Range

    30km(target:2.3m x 2.3m vehicle)

    Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

    Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof

    Cooled HgCdTe FPA Long Range Infrared Thermal Imaging Camera Great Weatherproof
