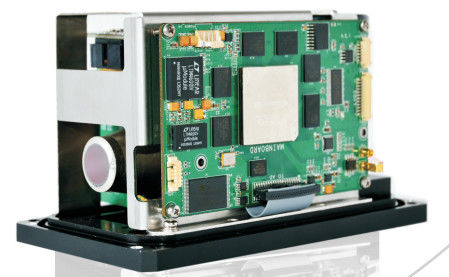

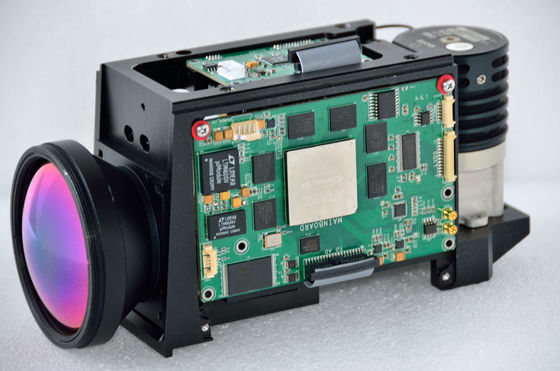

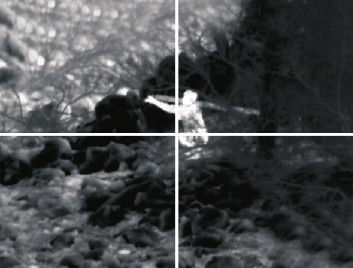

Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System

Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System

  • Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System
  • Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System
  • Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System
Various FOV lens ,cooled HgCdTe FPA Thermal Imaging Module For Thermal Security Camera System
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: SGS, ISO9001:2000
Model Number: JH202-320A/B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 1months after received payment
Payment Terms: T/T, L/C
Supply Ability: 500Sets/Year
Contact Now
Detailed Product Description
Detector Type: Cooled HgCdTe FPA Cooling Type: Stirling Cycle Cooling
Cooling Down: ≤6min At 20℃ , ≤8min At 50℃ Analog Video: PAL/NTSC
Frame Frequency: 25Hz , 50Hz , 100Hz , 200Hz Dimension: 145mmX76mmX88mm
Weight: 810g Input Voltage: +24VDC(8-42VDC Optional)
High Light:

thermal imaging camera module

,

infrared camera module



Medium-wave Cooled HgCdTe FPA Thermal Infrared Imaging Module



Description:



The mid-wave cooled HGCdTe FPA thermal infrared imaging module is a cooled MCT thermal imaging module operating in the 3.7-4.8um (B mode: 7.7-11um) band, providing an extremely compact and high-performance solution for OEMs. The JH202-320A/B module provides 240mm/60mm, 300mm/75mm dual field of view and 600mm/150mm/22mm three-field lens.



Features

  • Working in two  spectral bands and equipped with cooled HgCdTe FPA , it has high thermal sensitivity and low noise
  • Advanced image processing algorithms provide high quality images
  • Three field of view, two field of view, fixed lens and no lens configuration
  • Different frame frequency
  • Multiple control interface and image output interface, easy to integrate
  • Sterling cooling system, compact structure, small volume and light weight

Functions

  • Manual background/shutter calibration
  • White/black heat polarity switch

  • Manual/Auto image gain/brightness adjustment

  • Sampling voltage auto-focusing signal

  • Mirror image and flip the image horizontally or vertically


Technical Specifications


Detector
Detector material Cooled MCT FPA
Pixels 320x256
Pitch 30µmx30µm
Spectral band (A mode) 3.7~4.8µm (B mode) 7.7~11µm
NETD < 15mK (F/2)
Cooling type Stirling-cycle, Cooling temperature: < 100K
Cooldown time: < 6min@20° C; < 8min@50° C
Fill factor 90%
Optical Parameters
Focus length (optional) 300mm/75mm, 240mm/60mm, 600mm/150mm/22mm
FOV 1.8°x1.4°/ 7.3°x5.8° ; 2.3°x1.8°/9.1°x7.3°; 0.92°x0.73°/4°x3.2°/24.6°x19.8°
Image presentation
Video output Analog PAL/NTSC (Digital: Cameralink)
Integral time programmable
Frame rate 25, 50Hz, 100Hz, 200Hz
Electric zoom x2, x4
Polarity BH & WH
Gain adjustment Auto/Manual
Power system
Power supply DC24V (DC8V~42V)
Power consumption < 20W (cooling), <14W (steady operation)
Operating temperature -40° C~60° C
Storage temperature -40° C~60° C
Command & Control
Communication Interface RS232 / RS422
Physical parameters
Weight < 810g (lensless); <10.5kg (300mm/75mm); <9.8(240mm/60mm)
