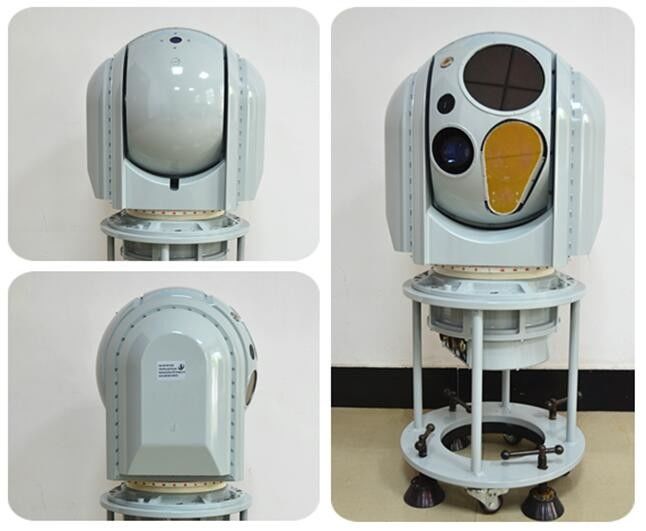

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System

  • High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System
  • High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System
High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH602-300/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 2-3months after received payment
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Gimbal
Type: Multi Sensor EO IR Camera Sensor: Type Multi Sensor EO IR Camera Sensor MWIR Cooled HgCdTe FPA
HDMI Format: PAL Sensor Size: 320x256
Effective Distance: 20km Applications: Navigation,Surveillance,Rescue
Configuration: Thermal Camera,Continuous Zoom TV Camera,LRF Gyro Stablization: Gyro
Standard: GJB Feature: Waterproof,weatherproof
High Light:

electro optics systems

,

electro optical infrared

,

Multi Sensors Electro Optical Infrared

Multi-Sensors Electro Optical Infrared EO / IR Tracking Camera System JH602-300/75



Description:



JH602-300/75 EMulti-Sensors Electro Optical Infrared EO / IR Tracking Camera System is equipped with a high performance MWIR cooled thermal camera, continuous zoom TV camera and 20km laser range finder, enables Search target at day/night, as well as aiming, recognition, tracking, ranging target, real-time providing target angle, angular speed, VI (video/image) etc information.It can work independently, additionally can receive slaving instruction from HOST, working with various launching system to attack sea and air target; additionally, it also can be used as ship auxiliary navigation and surveillance at night.



Applications:



Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with collimation control, navigation and early warning functions.



Features:



1. Multi-sensor IR+TV+LRF

2. High accuracy calibration keeps 3 sensors’ optical-axis parallel

3. Utilizing 2-axis design, high accuracy gyro stabilization ensures stabilized tracking

4. Military standard components, capable of working under severe environment for a long time





Specifications:



THERMAL CAMERA
Detector cooled HgCdTe FPA
Pixel 320*256 ( optional 640*512 higher resolution)
Spectral band 3.7μm~4.8μm
FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
FOV switching time ≤ 1s
Electronic zoom
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 18°*13.5°~1°*0.75° continuous zoom
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~20km (visibility 23km, 15m*10m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS422/RS232
ENVIRONMENTAL
Operating temperature range -40℃ ~ +50℃
Storage temperature range -50℃ ~ +70℃
POWER
Power Supply DC 24V/15A, DC28V/20A
Power Consumption

DC24/96W (avg.)/240W (Max.)

DC28V/28W(avg.)/70W (Max.)

PHYSICAL
Dimension Turret ≤ Φ400× 750
Control box 500 mm X 230 mm X 87 mm
Turret Weight ≤ 120kg (including mobile base);
Control box Weight ≤ 5kg

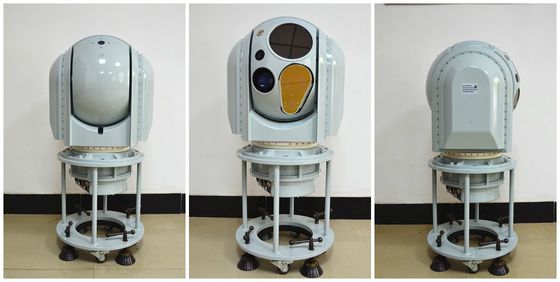

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 0

Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 1

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 2

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 3

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 4

Customer Distribution

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 5

Service Process

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 6

Products
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 7

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 8

Advantages

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 9

Certificate & Honor

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 10

High Accuracy Multi Sensors Electro Optical Infrared EO / IR Tracking Camera System 11
