WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | China |
| Brand Name: | JOHO |
| Certification: | CE, ISO9001:2000 |
| Model Number: | JH101-640A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Safety equipment case |
| Delivery Time: | 7days after received payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000Sets/Year |
| Technology: | Infrared | Style: | Core |
|---|---|---|---|
| Type: | Module | Sensor: | LWIR Uncooled VOx FPA |
| HDMI Format: | PAL/NTSC | Pixel: | 640x512 |
| Pitch: | 17μm X 17μm | Standard: | GJB, Military Technical Equipment |
| Configuration: | Thermal Camera Integration, Secondary Development | ||
| High Light: | infrared camera module,ir camera module,Light Weight Infrared Camera Module |
||

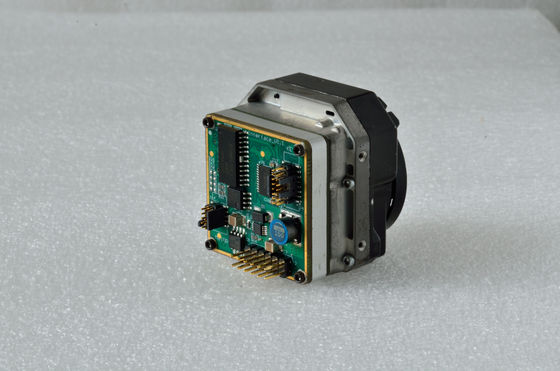

Compact Structure And Light Weight 17μm LWIR Thermal Imaging Camera Module Core For UAV
FEATURES:
APPLICATIONS:
High resolution thermal imaging module for thermal camera
TECHNICAL SPECIFICATION
|
Detector |
|
|
Detector |
Uncooled LWIR VOx microbolometer |
|
Pixel |
640×512 |
|
Pitch |
17um |
|
NETD |
camera≤60mk at f/1 , detector≤50mk at f/1 |
|
Spectral band |
8~12um |
|
Frame frequency |
25Hz (PAL) / 30Hz(NTSC) (on request) |
|
Starting time |
<20s |
|
Image |
|
|
Polarity |
BH/WH |
|
Electronic Zoom |
×2 |
|
Manual gain |
Cycled adjustment |
|
Auto gain |
Auto adjustment |
|
Power |
|
|
Power supply range |
DC: +7V~+12V |
|
Power consumption |
<1.8W@25℃ |
|
Output auxiliary power |
2-way 5V DC |
|
Reverse connection protection |
Yes |
|
Over/under-voltage protection |
Yes |
|
Environmental |
|
|
Operating temperature range |
-20ºC~+60ºC (optional -40ºC~+60ºC) |
|
Storage temperature range |
-50ºC~+70ºC |
|
Humidity |
5%~95% non-condensation |
|
Vibration & shock-resistance |
Vibration: GJB 150-16 2.3.1 |
|
Axial shock: GJB 150-18 test: 7 100g/6ms |
|
|
Lateral shock: GJB 150-18 test: 5 40g/11ms |
|
|
Anti temperature shock |
-5ºC/min (-40ºC~+60ºC) |
|
Physical |
|
|
Weight |
≤58g (lenless); ≤400g (with 50mm lens) |
|
Dimension |
44.5mm×44.5mm×40mm (lensless) |
|
Interface |
|
|
External power input interface |
yes |
|
Communication interface |
RS-232/RS422 (on request) |
|
Digital video output interface |
16Bit TTL/LVDS/Camera link (on request) |
Contact Person: Tracey
Tel: +8613152465800
