Long Range Coastal Radar Surveillance System

Long Range Air Target Surveillance Meter-band Radar Surveillance System

Air Surveillance Radar System

Description

Naval long range air surveillance radar operates in the meter-band.Capable of long range detection of air targets(fighter,bomber) and medium range detection of stealth air targets for early-warning.

Features

• Non-coherent pulse compression (NCPC) system
• Moving target automatically detection
• Long range air surveillance

Application

• Search air targets (fighter, bomber and stealth aircraft) in battle sea
• Providing long distance early-warning for ship formation

Technical Specification
System

• Band: meter-band
• Beam width: 5° (H), 30° (V)
• Scan coverage: 360°×30°
• Range: 350km against 4m2 RCS target;
•           100km against 0.1m2 RCS Stealth aircraft
• Accuracy: range error ≤200m, angle error ≤1°

Processing capacity

•  Multiple tracking: ≥ 20pcs

Antenna

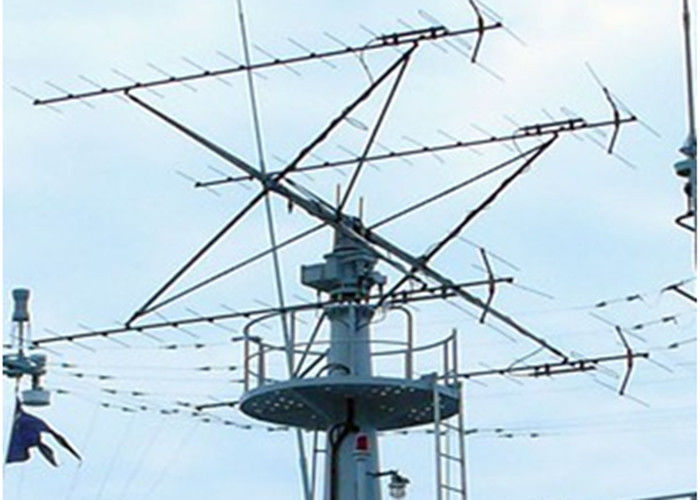

•  Antenna : Yagi-Uda array
•  Rotation speed: 6RPM

Transmitter / Receiver

•  Frequency: meter-band
•  NF: <6dB

Power Supply

•  AC: 220VAC (150~250 VAC)
•  Power consumption: 25kW
