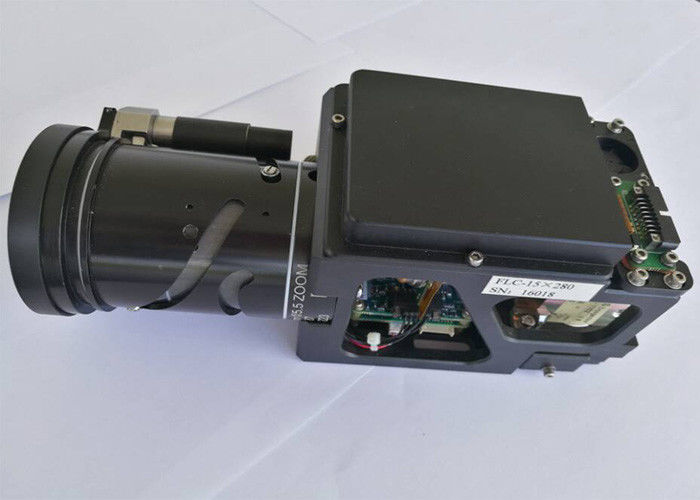

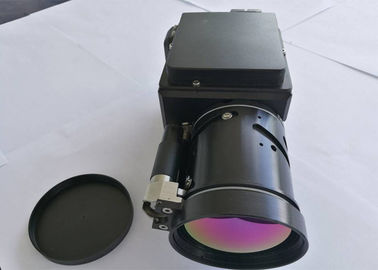

Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera

Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera

  • Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera
  • Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera
Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera
Product Details:
Place of Origin: China Wuhan
Brand Name: Wuhan Joho
Certification: ISO, SGS
Model Number: JH640-280
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 4 month
Supply Ability: 500pcs per year
Contact Now
Detailed Product Description
Sensor: MWIR Cooled MCT FPA Resolution: 640x512
Optics: 15-280mm Size: 218mm×98mm×89mm
Weight: 1.6kg Application: Thermal Security Camera, EO IR Camera System Integration
High Light:

drone thermal camera

,

drone infrared camera

Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera


JH640-28015 thermal security camera is specially provided for EO system integration, featured with mini-size. It is equipped with 640×512 high resolution MWIR cooled sensor and 15~280mm continuous zoom lens, capable of clearly distinguish targets at long range.

Technical Specification

Detector Parameters
Detector type Cooled FPA HgCdTe
Pixels 640×512, 15μm×15μm
Spectral Range 3.7μm~4.8μm
NETD ≤25mK@25ºC
Cooling Sterling
Optics Parameters
Focus Length 15~280mm continuous zoom
F number 5.5
FOV 1.97°(H)×1.58°(V) ~36.5°(H)×29.2°(V)
Image Presentation
Video output PAL
Frame frequency 30Hz (50Hz on request)
Digital video 14bit LVDS
Brightness & Contrast Auto/Manual
Polarity BH&WH
E-zoom ×2/×4
Image enhancement Yes
Image inverted Yes
Power parameters
Power supply 24~36VDC
Power consumption ≤10w@25ºC
Environmental Parameters
Operating temperature -32ºC~+60ºC
Storage temperature -40ºC~+70ºC
Vibration test GJB150.16-86/MIL-STD-810F-514.5
Shock test GJB 150.18-96 /MIL-STD-810F-516.4
Physical Parameters
Weight ≤1.6kg
Dimension ≤218mm×98mm×89mm
Color Oxide black

Airborne EO IR Camera System Integration , Small Size MWR Cooled Thermal Camera 0
