Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080

Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080

  • Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080
  • Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080
  • Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080
Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHS209-S05-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Safety Equipment Case
Delivery Time: negotiation
Payment Terms: T/T, L/C,, Western Union, MoneyGram
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Function: Searching, Observation, Tracking And Positioning Gyro Stabilised Gimbal: 2 Axis
Sensor: HD CCD And IR Thermal Imager Weight: 3kg
Dimension: 156mm(Diameter)×244mm(H) Application: Unmanned Ship, Unmanned Vehicle, Usv, Uav
Pixel: 1920x1080 Color: White & Black
Stabilization Accuracy: ≤0.5mrad Detector: VOX Uncooled FPA
Power Supply: DC 12V Power Consumption: ≤15W
High Light:

Ship Borne EO IR Tracking System

,

IR Tracking System 1920x1080

,

EO Infrared Tracking System

JHS209-S05-100 2 Axis Infrared Optical Tracking System Pixel 1920x1080

Introduction

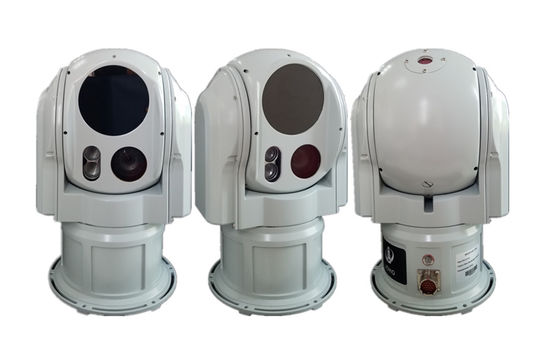

JHS209-S05-100 ship-borne electro-optical surveillance system is a highly integrated optical-mechanical-electro system equipped with a HD 1080p 30× daylight camera, an uncooled LWIR thermal camera and a 5km laser range finder. The system is slaving to a 2-axis and 2-gimbal stabilized platform. Featured with compact and modular design, it is provided for ships meeting military and civilian requirements such as search, observation, reconnaissance and tracking sea-surface and air targets, widely applied in navy, police, coastal guard and maritime etc.

Functions

  • 2-axis (azimuth and elevation) stabilization, high accuracy gyro and servo control system implement full coverage reconnaissance.
  • Support HD SDI image transmission and IP network video/image transmission
  • Compact size, light weight, strong adaptability, low power consumption and high cost-efficiency.
  • Video tracking function.
  • High accuracy correction ensures optical axis of thermal camera, daylight camera and laser range finder are alignment.
  • Gimbal is able to be controlled by joystick.
  • Operation mode, azimuth angle and elevation angle data are able to be transmitted back.
  • Fully sealed, water-proof, vibration resistance, shock resistance, long lifetime under harsh environment.

Performance Specifications

Technical Specification

THERMAL CAMERA
Detector Uncooled FPA
Pixel 640*512
Spectral band 8μm~14μm
Pixel 17mm x 17mm
Focal length 80mm
DAY LIGHT CAMERA
Detector 1/2.8" CMOS
Focal length 4.3~129mm, 30x
Resolution 1920×1080
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~5km (visibility 10km, 3m*3m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤0.5mrad(1σ)
Turret direction range azimuth:360° continuous; elevation:+60°~-60°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥30°/s
Pitch ≥30°/s
ENVIRONMENTAL
Operating temperature range -20ºC ~ +40ºC
Storage temperature range -30ºC ~ +50ºC
Tracking
Tracking speed ≥2.5FOV/S
Min tracking contrast ratio 5%
Dynamic tracking accuracy superior to 1mrad
POWER
Power Supply DC 24V
PHYSICAL
Dimension Turret ≤ Φ220× 400mm
Turret Weight ≤ 10kg



Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080 0Modular Ship Borne EO IR Tracking And Surveillance System Pixel 1920x1080 1
