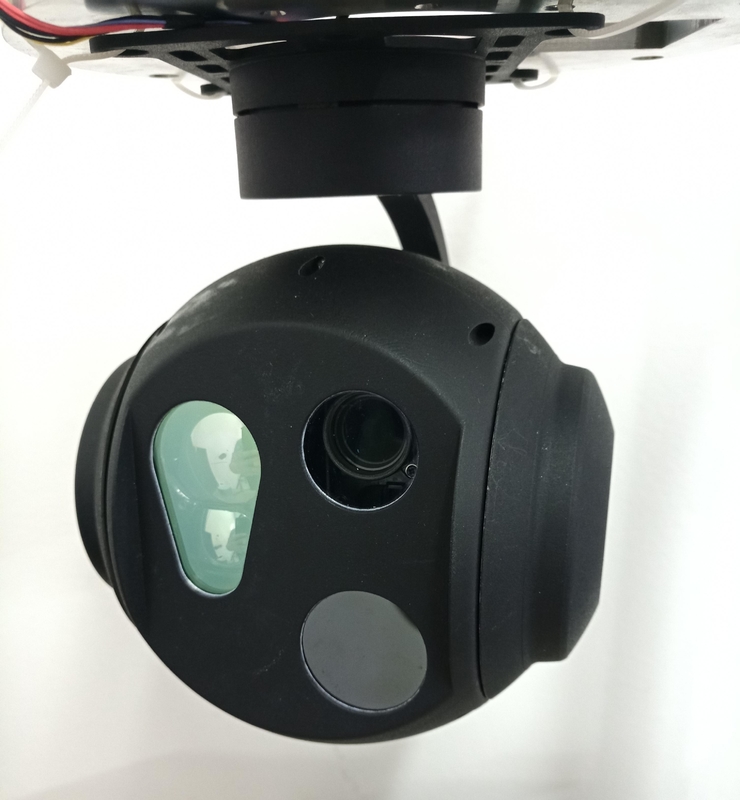

Name: Ultra-Small Electro-Optical / Infrared Gimbal System With 1.5km Laser Range Finder
Brand: Joho
SKU: JH120
Rating: 4.9 (177 reviews)

Home Products Electro Optical Tracking System

Ultra-Small Electro-Optical / Infrared Gimbal System With 1.5km Laser Range Finder

Product Details:

Place of Origin:	China
Brand Name:	Joho
Model Number:	JH120

Contact Now

Detailed Product Description

Features:	Small Size And Light Weight	Stabilization Accuracy:	≤1mrad
IP Grade:	IP66	Communication:	TTL/RS232
Power Supply:	DC12V	Spectral Band:	8μm~14μm
Maintenance:	Low Cost	Optical Zoom:	10.5 ×
Operating Temperature:	-20ºC~+55ºC	Gyro Stabilization:	3-axis
High Light:	Infrared Gimbal System , 1.5km Laser Finder Infrared Gimbal System , Electro-Optical Infrared Gimbal System

Product Description:

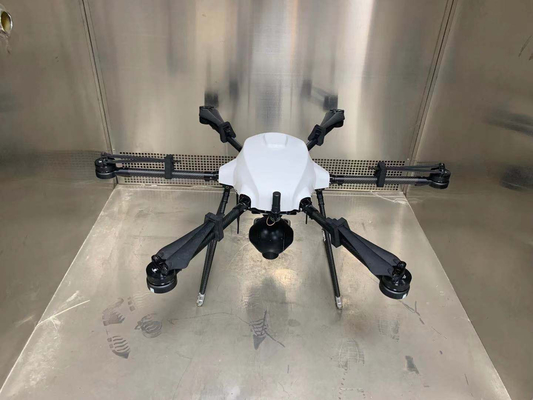

This gimbal is suitable for civilian UAVs, like the small UAVs of fixed-wing aircraft, rotary wing UAVs, and small unmanned helicopters, etc. It can realize the search, observation and tracking for ground and aerial targets, with the features of ultra-light weight, ultra-small size and super low consumption,etc, which will effectively reduce payload and extend flight time.

Features:

High resolution daylight camera with 10.5× continuous zoom
Uncooled IR camera with 25mm lens
1.5km laser range finder
Manual/auto tracking
Small size and light weight(only 750g)

Technical Parameters:

SYSTEM PARAMETER
Gyro stabilization	3-axis
Range	Azimuth:-160°~+160°
	Elevation:-20°~+110°
	Roll:-30°~+30°
Max. angular speed	≥30°/s
Stabilization accuracy	≤1mrad
IP grade	IP66
External interface	Power supply:DC12V
	Communication:TTL/RS232
	Video:HDMI/MB Ethernet
IR CAMERA
Detector	Uncooled FPA
Resolution	640×512
Pixel size	12μm×12μm
Spectral band	8μm~14μm
Focal length	25mm
FOV	22°×17.6°
DAYLIGHT CAMERA
Sensor	Colored CMOS
Resolution	1920×1080
Optical zoom	10.5 ×
Focal length	3.2~33.6mm
HFOV	62°~ 6.5°
LASER RANGE FINDER
Wavelength	905nm
Divergence angle	10mrad
Range	5~1500m
Accuracy	±5m
PHYSICAL PARAMETER
Dimension	Φ120mm×168mm
Weight	≤750g
Color	black
ENVIRONMENTAL PARAMETER
Operating temperature	-20ºC~+55ºC
Storage temperature	-30ºC~+65ºC

Packing and Shipping:

Packaging and Shipping for Electro Optical Tracking System

The Electro Optical Tracking System is packaged in a secure carton and shipped using a reputable courier service. All packages are tracked to ensure safe delivery.

All packages are shipped with the following:

Secure carton
Instructions and documentation
Power adapter
Appropriate cables
