High Performance Thermal Security Camera With 3.7μM~4.8μM Spectral Range , 24VDC

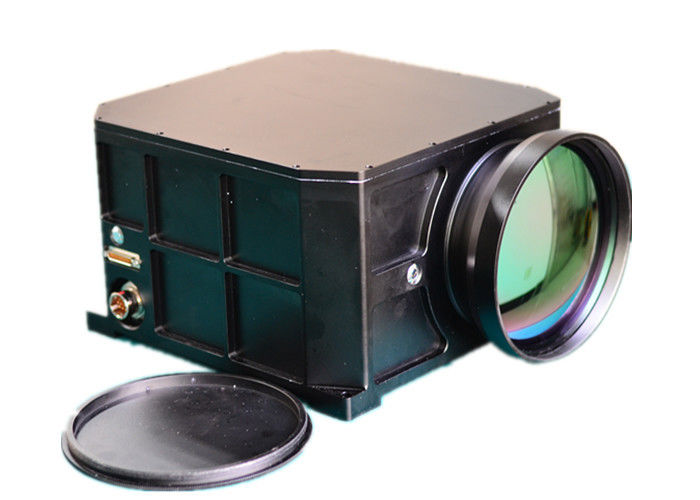

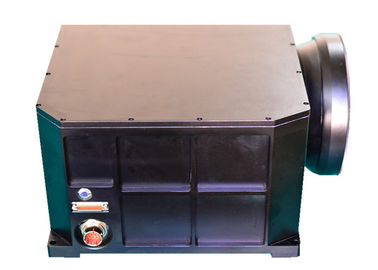

JH320-300/75 Dual-FOV Cooled Obeservation Thermal Security Camera

Introduction

1. JH320-300/75 cooled thermal security camera is a matured and high reliability product with military standard.
2. Built on high sensitivity 3^rd generation 320x256 cooled FPA detector with 300mm / 75mm dual-FOV lens, it achieves the mission of fast situational awareness and target recognization with wonderful wide and narrow field of view in one camera.
3. It adopts the advanced image processing algorithms which greatly enhanced the image quality and camera performance under special environment.
4. Thanks to compact and total weather-proof design, it allows operation in any harsh environment.

Features

• Switchable 2-FOV optics satisfies multi-mission and fast searching and accurate locating
• Intelligent Image Enhancement optimize the image quality
• Standard mechanical interface for easy integration
• Weather-Proof, compact and rugged design

Applications

•  Border/Coastal security surveillance and monitoring
•  EO IR system integration
•  Search and rescue
•  Airport, bus station, sea port, dock monitoring
•  Forest fire prevention
•  Industry plant & warehouse monitoring
•  Mining & oil field monitoring


TECHNICAL SPECFICATION
