Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System

Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System

  • Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System
  • Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System
Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001:2000, SGS
Model Number: JH320-150/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case with wheels
Delivery Time: 2-3months after received payment
Payment Terms: T/T , D/A
Supply Ability: 50Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Pan / Tilt
Detector: LWIR Uncooled VOx FPA Horizontal Resolution: 324x256
Configuration: Thermal Camera And Day Light Camera Standard: GJB
High Light:

Infrared Tracking System

,

Electro Optical Thermal System

Coastal / Borden Intelligent Surveillance Electro Optical Thermal Tracking System



Description:

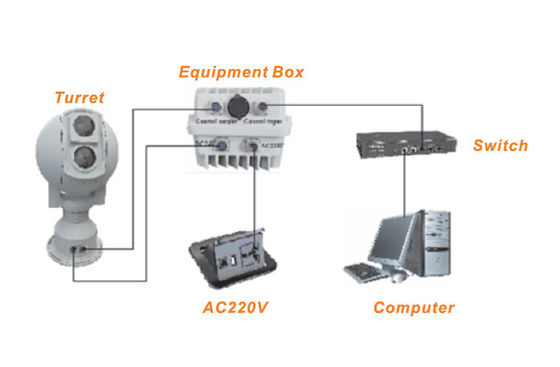

IRSTCoastal/Borden Surveillance Electro Optical Thermal Tracking System is an intelligent IP network establishing a "virtual fence" near the coast/border to detect intruders and other threats from the sea or border in the total darkness and bad weather. This Coastal Surveillance Electro Optical Intelligent Thermal Tracking System is either to be used as independent or connecting with radar under"slaving mode", capable of automatically turn to target designation area. This system adopts high-speed fiber optic data transmission to ensure continuous video record at long range. It is used UFPA 324x256 pixels detector and 1080p HD digital signal transmission.



Applications:



  • Coastal and Borden Surveillance
  • Intelligent monitoring
  • Middle-distance performance
  • Picture and video recording



Features:

  • Configurable sensor and lens to satisfied various missions.
  • Continuous zoom and adjustable focusing speed is available.
  • High precision turret position, less than 0.1°.
  • Support patrol scanning and repeat positioning.
  • Simple connection against dust and water ingress, resist to corrosion, tarnishing, salt fog.
  •  capable to have the alert monitoring in a variety of harsh environmental and climatic conditions



Specifications:



THERMAL CAMERA

Detector

Uncooled VOx FPA

Pixel

324×256

Spectral band

8~14μm

FOV

3.1°×2.4°~15.2°×12.2°

IFOV

0.17~0.83mrad

NETD

≤50mK@F1.0,300K

DAYLIGHT CAMERA

Focal length

12.5~750mm,60X Zoom

FOV

0.5°~28.7°

F#

F3.8~F22.C

Sensor

1/1.8''Progressive Scan CMOS

Video Control

AGC, AWB, support day/night mode switch auto/manual

Resolution

1080p,Support three bit stream

TURRET TECHNICAL PARAMETERS

Pan Range

360°

Tilt Range

-80°~+80°

Pan Speed

0.1°~30°/s

Tilt Speed

0.1°~25°/s

Acceleration

Max:40°/s2

Protocol

Pelco-D,Pelco-P

Baud Rate

2400/4800/9600/19200 bps

ENVIRONMENTAL

Operating Temperature

-40°C~+60°C

Storage Temperature

-50°C~+70°C

Protection

IP66

Salt Fog

PH6.5~7.2, 48 hours continuous spray

POWER

Power Supply

DC24V

Consumption

≤180W

PHYSICAL

Weight

≤110kg

Size

605mm×605mm×1160mm(L×W×H)

Application Environment

Outdoor
