Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System

Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System

  • Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System
  • Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System
Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System
Product Details:
Place of Origin: CHINA
Brand Name: JOHO
Certification: ISO9001:2000
Model Number: JH602-300/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: 3-4 months after received payment
Payment Terms: T/T
Supply Ability: 100Sets/Year
Contact Now
Detailed Product Description
Technology: Infrared Style: Gyro Gimbal
Type: Multi Sensor EO IR Camera Sensor: MWIR Cooled HgCdTe FPA
HDMI Format: PAL Sensor Size: 320x256
Effective Distance: 20km Applications: Navigation,Surveillance,Rescue
Configuration: Thermal Camera,Continuous Zoom TV Camera,LRF Gyro Stablization: Gyro
Standard: GJB Feature: Waterproof,weatherproof
High Light:

gyro stabilized systems

,

Infrared Tracking System

Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System JH602-300/75C





Electro-optical EO/IR Tracking System



Description:

Electro-optical EO/IR Multi-Sensor Infrared Tracking System for Security Application is equipped with a high performance thermal camera, TV camera and laser range finder, enables search target at day/night, as well as aiming, recognition, tracking, ranging target, real-time providing target angle, angular speed, VI (video/image) etc information. As a part of fire control system, it keeps the sensors Lines of Sight (LOS) aiming and direction stabilization while the carrier (ship) attitude changing or under vibration condition.S3500 system can work independently, additionally can receive slaving instruction from fire control system, working with various launching system to attack sea and air target; On the non-combat condition, it also can be used as ship auxiliary navigation and surveillance at night.



Features:

  •   Multi-sensor IR+TV+LRF
  •   High accuracy calibration keeps 3 sensors’ optical-axis parallel
  •   Utilizing 2-axis design, high accuracy gyro stabilization ensures stabilized tracking
  •   Military standard components, capable of working under severe environment for a long   time

Applications:

Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with collimation control, navigation and early warning functions.





Specifications:



THERMAL CAMERA
Detector cooled HgCdTe FPA
Pixel 320*256 ( optional 640*512 higher resolution)
Spectral band 3.7μm~4.8μm
FOV WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4°
FOV switching time ≤ 1s
Electronic zoom
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 18°*13.5°~1°*0.75° continuous zoom
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~20km (visibility 23km, 15m*10m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS422/RS232
ENVIRONMENTAL
Operating temperature range -40℃ ~ +50℃
Storage temperature range -50℃ ~ +70℃
POWER
Power Supply DC 24V/15A, DC28V/20A
Power Consumption

DC24/96W (avg.)/240W (Max.)

DC28V/28W(avg.)/70W (Max.)

PHYSICAL
Dimension Turret ≤ Φ400× 750
Control box 500 mm X 230 mm X 87 mm
Turret Weight ≤ 120kg (including mobile base);
Control box Weight ≤ 5kg

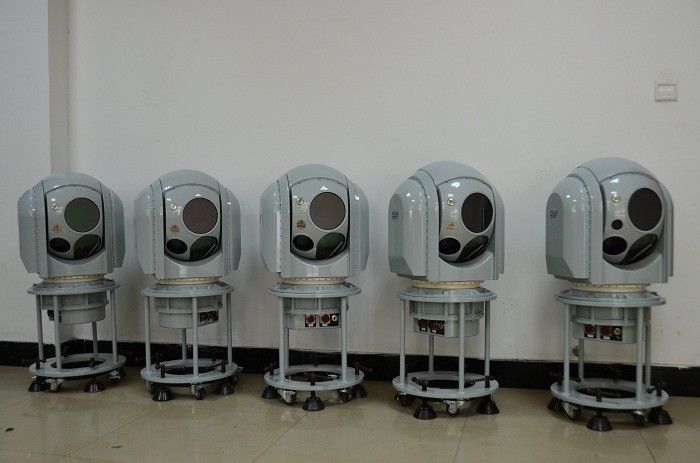

Security Surveillance Electro-Optical Multi-Sensor Infrared Tracking System 0
