640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System

640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System

  • 640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System
  • 640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System
  • 640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System
640x512 Uncooled FPA Dual Sensor IR Electro Optical Tracking System
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JH601-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: standard packaging
Delivery Time: 2 months
Payment Terms: T/T
Supply Ability: 500 pcs/year
Contact Now
Detailed Product Description
Stabilized Platform: 2-axis Gyro Stabilized Spectral Band: 8μm~14μm
Power Supply: DC24V Protection: IP66
External Interface: SDI Video Detector: 640×512 Uncooled FPA
Angular Accuracy: ±0.1°(1σ) FOV: 25°×20°
Video Interface: PAL Analog Video Working Temperature: ﹣40℃~﹢60℃
Azimuth Range: 360º Continuous
High Light:

Uncooled FPA Electro Optical Tracking System

,

Dual Sensor Electro Optical Tracking System

,

Dual Sensor EO IR System

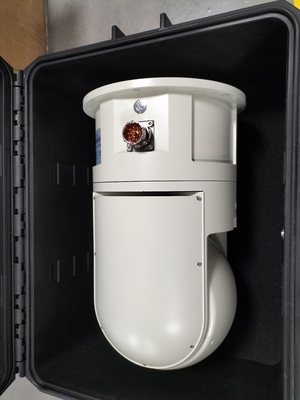

640×512 Uncooled FPA Dual-sensor High Accuracy EO/IR Tracking And Surveillance Gimbal





JH601-25 dual-sensor gimbal is applicable on small vehicles for target surveillance and tracking at day and night. The system is an optical-mechanical-electrical integration, equipped with a LWIR uncooled thermal camera and a HD 1080p daylight camera, capable of output video /image in real-time, which is widely deployed in military field, public security and other civilian fields.



Main Functions

1) Azimuth and elevation 2-axis stabilized platform, integrated with high accuracy gyro and servo control system, to realize full coverage reconnaissance, support both day and night observation.

2) Small size, light weight, and compact structure, strong carrier adaptability, low consumption, and high cost-effectiveness.

3) Object tracking function;

4) High accuracy calibration to ensure the alignment of thermal camera and daylight camera.

5) Capable of data return such as working mode, azimuth angle, elevation angle, etc.

6) Fully-sealed high level waterproof, optical-mechanical-electrical integrated design, with strong vibration and shock resistance, able to be used in harsh environment with long life.



Thermal Camera

Detector 640×512 Uncooled FPA
Pixel size 17μm
Spectral band 8μm~14μm
Focal length 25mm (athermalization)
FOV 25°×20°
NETD ≤50mK(F/1)
E-zoom 2×, 4×
Video interface PAL analog video
Day Light Camera
Detector 1/4 type Super HAD CCD
Resolution Approx 800000 pixels
Digital zoom 12× (312× with optical zoom)
Focal length 3.5mm~91mm (26× optical zoom)
Video interface PAL analog video
System Parameters
Stabilized platform 2-axis gyro stabilized
Stabilization accuracy ≤1mrad(1σ)
Angular accuracy ±0.1°(1σ)
Azimuth Range 360º continuous
Elevation Range -20°~+90°
Azimuth swing speed 1~60°/s (adjustable)
Elevation swing speed 1~100°/s (adjustable)
Power supply DC24V
Communication RS485 (Pelco D)
External interface SDI video
Physical parameters
Power consumption ≤50W (stable), ≤120W (peak)
Dimension ≤Φ240mm×365mm
Color White gray
Weight 10kg
Environmental Parameters
Working temperature ﹣40℃~﹢60℃
Storage temperature ﹣45℃~﹢70℃
Vibration test 10-35Hz, 35-160Hz, 0.5mm displacement, 25m/s2
Protection IP66
