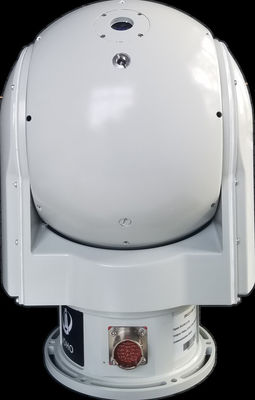

1920x1080 2 Axis Stabilization Electro Optical System

1920x1080 2 Axis Stabilization Electro Optical System

  • 1920x1080 2 Axis Stabilization Electro Optical System
  • 1920x1080 2 Axis Stabilization Electro Optical System
  • 1920x1080 2 Axis Stabilization Electro Optical System
1920x1080 2 Axis Stabilization Electro Optical System
Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHS223-S02-30
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: Two months
Supply Ability: 50 Sets/Year
Contact Now
Detailed Product Description
Detector: SONY 1/2.8" CMOS Day Light Camera Pixel: 1920*1080
Laser Range Finder Ranging: 15m~3.5km Stabilization Accuracy: ≤0.5mrad(1σ)
Turret Weight: ≤ 10kg Communication Interface: RS422
Target Positioning Accuracy: ≤20m Power Supply: DC 12V
Focal Length: 4.3-129mm (30x Optical Zoom)
High Light:

2 Axis Stabilization Electro Optical System

,

1920x1080 Electro Optical System

,

1920x1080 Electro Optical Sensor System

1920 * 1080 2-axis Stabilization High-accuracy Electro Optical System For Search, Observe And Track



JHS223-S02-30 shipborne optoelectronic tracking system is a surveillance radar system, equipped with two 30 × continuous zoom Hd 1080p day light cameras and a 3.5km laser range finder. It is mainly applied to search, observe and track sea and air targets, and outputs video and image in real time, which is widely used in public security, alarm, maritime and other military and civil fields.


Functions
  • Azimuth and elevation 2-axis stabilization, high-accuracy gyro and servo control system, to realize no dead-angle coverage in reconnaissance range
  • Network interface communication: to realize the equipment operation from ground control station, as well as send back video and image through wireless communication technology
  • Video tracking: able to realize target locking and tracking
  • Able to control the gimbal attitude through host computer software
  • Send data of working mode, azimuth angle, and elevation angle. etc back
Technical parameter
NFOV DAY LIGHT CAMERA
Detector SONY 1/2.8" CMOS
Pixel 1920*1080
Focal length 4.3-129mm (30x optical zoom)
FOV 63.7°-2.3°
WFOV DAY LIGHT CAMERA
Detector SONY 1/2.8" CMOS
Pixel 1920*1080
Focal length 4.3-129mm (30x optical zoom)
FOV 63.7°-2.3°
LASER RANGE FINDER
Wavelength 1.55μm
Ranging 15m~3.5km
Measurement accuracy ±0.75m (50~1.5Km),±2m(>1.5Km)
Frequency rate 2Hz
SERVO
Stabilization accuracy ≤0.5mrad(1σ)
Turret direction range azimuth:360° continuous; elevation:-90°~+90°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥30°/s
Pitch ≥30°/s
ENVIRONMENTAL
Operating temperature range -20ºC ~ +50ºC
Storage temperature range -30ºC ~ +60ºC
Tracking
Min tracking contrast ratio 3%
Min tracking size 3x3 pixel
Video output 1 network output
Communication RS422
POWER
Power Supply DC 12V
PHYSICAL
Dimension Turret ≤ Φ240× 343mm
Turret Weight ≤ 10kg


System components
This system is composed of EO/IR gimbal and host computer software, shown in Fig 1. The gimbal is installed on unmanned ship and the host computer software is in control cabinet to realize the system control.
1920x1080 2 Axis Stabilization Electro Optical System 0
Structure dimension
1920x1080 2 Axis Stabilization Electro Optical System 1
