Product Details:
Place of Origin: China
Brand Name: JOHO
Certification: ISO9001
Model Number: JHS223-S02-30
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Customized Aluminum Alloy Case
Delivery Time: Two months
Supply Ability: 50 Sets/Year
Contact Now
Detailed Product Description
Configuration: Dual Day Light Camera + Laser Range Finder Day Light Camera1: 1920*1080
Day Light Camera2: 1920*1080 Laser Range Finder: 15m~3.5km
Focal Length: 4.3mm~129mm(F1.6~4.7) Hfov: 63.7°~2.3°
Communication Interface: RS485 Target Positioning Accuracy: ≤20m
High Light:

Infrared Tracking System

,

infrared imaging systems

,

Multi sensor EO IR Tracking System

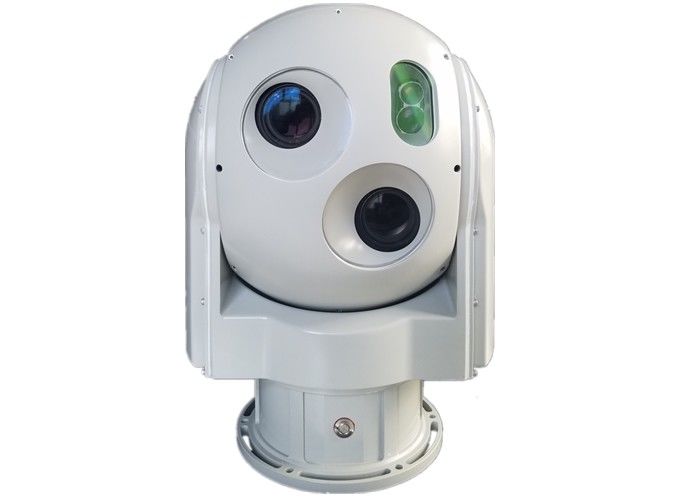

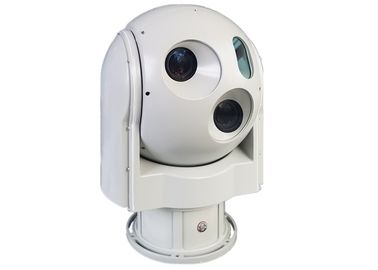

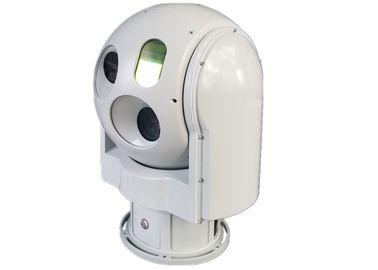

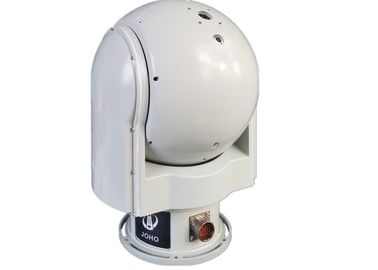

JHS223-S02-30 Ship-borne Multi-sensor EO/IR Tracking System

Introduction

JHS223-S02-30 ship-borne electro-optical tracking system is an optical-mechanical-electrical integrated searching and tracking system, equipped with 2 sets of 30× continuous zoom HD 1080p day light camera and a 3.5km laser range finder. It is mainly applied for search, observation, and tracking of sea targets and air targets, as well as to output video and image in real time. It is widely deployed for military application and civil application of public security, alerting, and maritime, etc.


Functions
  1. Azimuth and elevation 2-axis stabilization, high-accuracy gyro and servo control system, to realize no dead-angle coverage in reconnaissance range.
  2. Network interface communication: to realize the equipment operation from ground control station, as well as send back video and image through wireless communication technology.
  3. Small size, light weight, compact structure, high adaptability to carrier, low consumption, and high cost-effectiveness.
  4. Video tracking: able to realize target locking and tracking;
  5. High accuracy alignment to ensure the optical axis alignment of the three sensors of day light camera1, day light camera2, and laser range finder.
  6. Able to control the gimbal attitude through host computer software.;
  7. Send data of working mode, azimuth angle, and elevation angle. etc back
  8. Fully sealed high level waterproof, integrated design, high resistance to shock and vibration, long life use in harsh environment
technical parameter
NFOV DAY LIGHT CAMERA
DetectorSONY 1/2.8" CMOS
Pixel1920*1080
Focal length4.3-129mm (30x optical zoom)
FOV63.7°-2.3°
WFOV DAY LIGHT CAMERA
DetectorSONY 1/2.8" CMOS
Pixel1920*1080
Focal length4.3-129mm (30x optical zoom)
FOV63.7°-2.3°
LASER RANGE FINDER
Wavelength1.55μm
Ranging15m~3.5km
Measurement accuracy±0.75m (50~1.5Km),±2m(>1.5Km)
Frequency rate2Hz
SERVO
Stabilization accuracy≤0.5mrad(1σ)
Turret direction rangeazimuth:360° continuous; elevation:-90°~+90°
TURRET MAXIMUM ANGLE SPEED
Azimuth≥30°/s
Pitch≥30°/s
ENVIRONMENTAL
Operating temperature range-20ºC ~ +50ºC
Storage temperature range-30ºC ~ +60ºC
Tracking
Min tracking contrast ratio3%
Min tracking size3x3 pixel
Video output1 network output
CommunicationRS422
POWER
Power SupplyDC 12V
PHYSICAL
Dimension Turret≤ Φ240× 343mm
Turret Weight≤ 10kg


System Components
This system is composed of EO/IR gimbal and host computer software, shown in Fig 1. The gimbal is installed on unmanned ship and the host computer software is in control cabinet to realize the system control.
Multi - Sensor Electro Optical Tracking System Day Light Camera RS485 Communication 0
Structure Dimension
Multi - Sensor Electro Optical Tracking System Day Light Camera RS485 Communication 1
Multi - Sensor Electro Optical Tracking System Day Light Camera RS485 Communication 2Multi - Sensor Electro Optical Tracking System Day Light Camera RS485 Communication 3
