WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | Wuhan China |
| Brand Name: | JOHO |
| Certification: | ISO9001 |
| Model Number: | JHP103-M145C |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 months after payment |
| Supply Ability: | 100units/Year |
| Platform: | Two-axis | Detector: | 1/2.8" CMOS |
|---|---|---|---|
| Resolution: | 1920x1080 | Focal Length: | 5.0mm~115mm (23x Optical Zoom) |
| Focus: | Auto/Semi-Auto/Manual | Communication: | RS422 |
| Frame Frequency: | 30Hz (25Hz For Optional) | Azimuth: | N×360°continuous |
| Dimension (DxH): | ≤ Φ145mm×230mm | ||
| High Light: | Infrared Tracking System,infrared imaging systems |
||

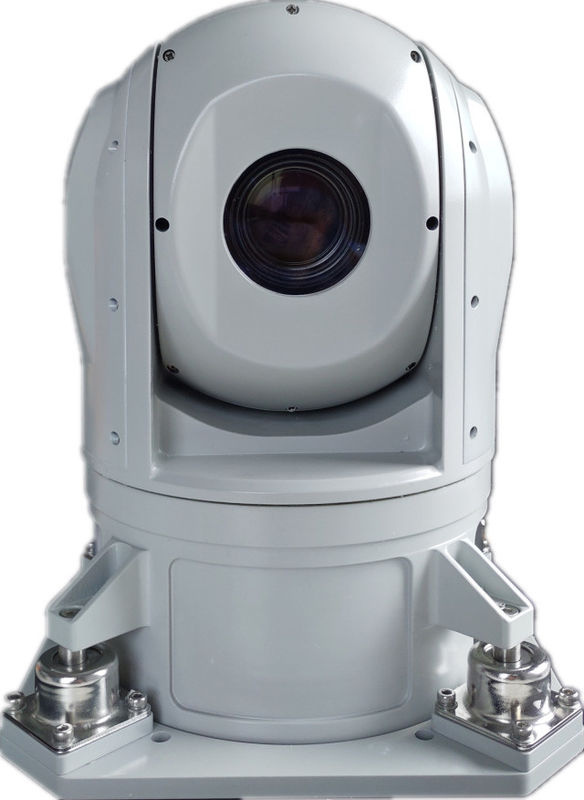

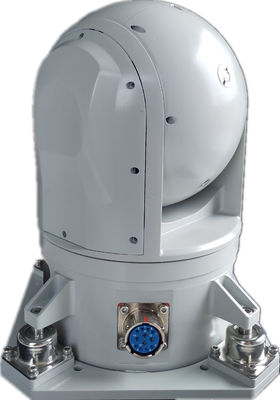

JHP103-M145C USV Small Size Shipborne EO/IR Imaging Tracking Systems
Description
JHP103-M145C is equipped with a high-definition 1080P sunlight camera. The camera is driven to a 2-axis and 2-frame stabilized platform. It has small size, light weight, modular design, and is suitable for unmanned ships to search, observe and track surface targets, as well as reconnaissance and patrol monitoring.
Features:
Technical Specification:
| Day Light Camera | |
| Model | JHP103-M145C |
| CCD | 1/2.8 inch CMOS |
| Resolution | 1920x1080 (1280x720, 704x576 for optional) |
| Focal Length | 5.0mm~115mm (23x Optical Zoom) |
| FOV(H) | 60°49'~2°85' |
| Lens | 2.16 million pixels high definition |
| Focus | Auto/Semi-Auto/Manual |
| Frame Frequency | 30Hz (25Hz for optional) |
| Video | Digital Video Network Interface, Analog Video PAL Interface, could output at the same time |
| Communication | RS422 |
| Ranging | Fishing boat ( 6x2.5m ):≥1Km Missile boat ( 34x8m):≥3Km |
| Gyro Stabilization Platform | |
| Stabilization Accuracy | 0.5mrad (1σ) |
| Accuracy | ±0.1°(1σ) |
| Servo Driving System | |
| Rotation Range | |
| Azimuth | n×360°Continuous |
| Pitch | -35°~+85°(0° is the horizontal forward) |
| Maximum Angle Speed | |
| Azimuth | ≥40°/s |
| Pitch | ≥30°/s |
| Video Tracking Module | |
| Static Tracking Accuracy | ≤1 pixel |
| Dynamic Tracking Accuracy | Better than 1mrad |
| Tracking Speed | ≥2.5 FOV/s |
| Minimum Tracking Contrast | 5% |
| Environmental Specification | |
| Operating Temperature Range | -20ºC ~ +50ºC |
| Storage Temperature Range | -30ºC ~ +60ºC |
| Physical Specification | |
| Dimension (DxH) | ≤ Φ145mm×230mm |
| Weight | 3.38kg ( Not included electronic cabin) |
| Installation | Ship Mast |
