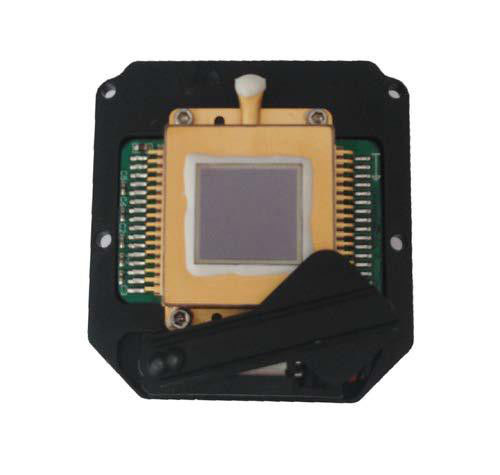

Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime

Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime

    • Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime
    • Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime
  • Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime

    Product Details:

    Place of Origin: China
    Brand Name: JOHO
    Certification: ISO9001:2000
    Model Number: UWA384CX-H09-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiable
    Packaging Details: safety box with vibration proof, water proof
    Delivery Time: negotiable
    Payment Terms: T/T, L/C
    Supply Ability: 100Sets/Year
    Contact Now
    Detailed Product Description
    Detector Type: VOx Uncooled Infrared LWIR Pixel: 1280×1024
    NETD: 40mK Spectral Band: 8~14μm
    Power Supply: DC 6.5V~13V Communication Interface: RS422
    Time To Image: ≤20s Size: 46mm×48.9mm×42mm
    Weight: ≤90g
    High Light:

    ir camera module

    ,

    thermal imaging camera module

    Infrared LWIR Uncooled 384x288 VOx thermal imaging camera module



    • Suit long-range, multi-task search and observation
    • Miniature size and light weight
    • High sensitivity and high resolution
    • Standard interface , easy to integrate
    • Entire enclosure shell protection and compact design



    Technical Specification

    Model UWA384CX-H09-F
    Type VOx Uncooled Infrared LWIR
    Array format 384×288, 25μm
    Spectral response 8~14μm
    Power consumption ≤1.7W@25℃
    Power supply DC 6.5V~13V
    Time to image ≤20s
    Operating temperature range -40℃~+60℃
    Storage temperature rage -55℃~+70℃
    NETD (@1/f. 25Hz) 40mK
    Focus motor driver PWM adjustment
    Video output 2 channel Analog video output, PAL formats
    Communication interface RS422
    Main control function

    Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment,

    Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset

    Five type reticle Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime 0
    Size 46mm×48.9mm×42mm
    Weight ≤90g


    Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime 1Infrared LWIR Thermal Imaging Camera Module Uncooled 384x288 VOx Longtime 2
